Full Automatic High Speed Tablet Press Machine with Weight Detection Control
GZPK-55 High speed rotary tablet press machine
Application
This double side rotary tablet press machine can press granular materials into round shape tablets, irregular tablets or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.
Key Features
- Double press rollers and double side output for mass production
- Stainless steel construction with fully closed housing and hardened rotary turret surface (GMP compliant)
- Advanced press system with equal-sized main and pre-press rollers for extended pressing time and superior tablet quality
- Double impellers type force feeder for improved granular fluidity and filling precision
- Double-side lifting tooling track structure for balanced punch operation

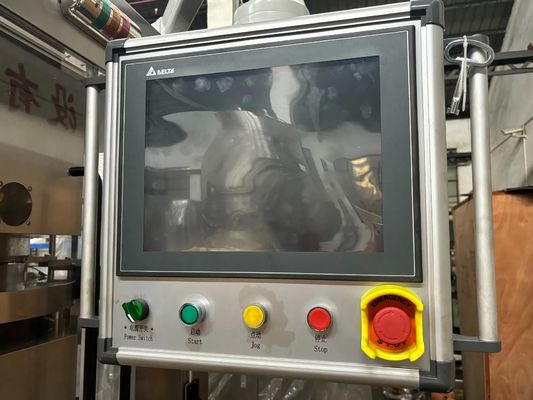

- Reliable electric control system with accurate production process monitoring
- Automatic central lubrication system for pressure rollers, toolings and tracks
- Special oil proof, dust proof and noise proof design
Technical Specifications
| Model |
GZP(K)-55 |
| Number of Station |
55 |
| Tooling Standard |
B |
| Max Main Pressure (KN) |
100 |
| Max Pre-pressure (KN) |
20 |
| Max Tablet Diameter (mm) |
Round Tablet: 18
Irregular Tablet: 19 |
| Max Filling Depth (mm) |
18 |
| Max Tablet Thickness (mm) |
7 |
| Max Turret Speed (r/min) |
70 |
| Max Production Capacity (pcs/h) |
462,000 |
| Motor Power (KW) |
11 |
| Overall Size (mm) |
1530×1250×1900 |
| Machine Weight (kg) |
4300 |

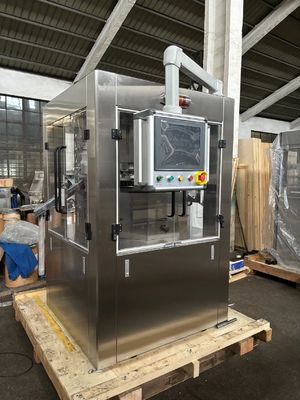

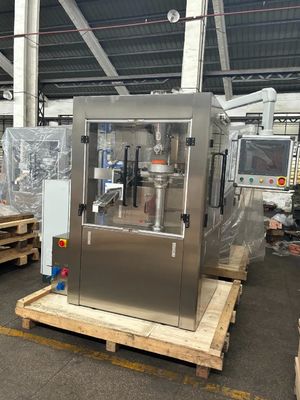

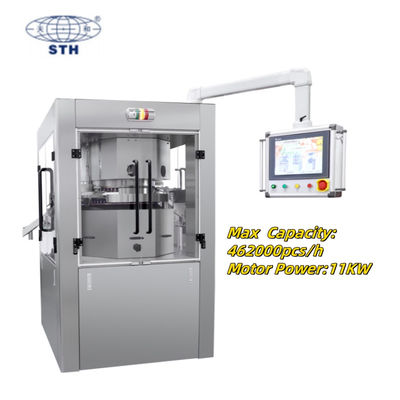

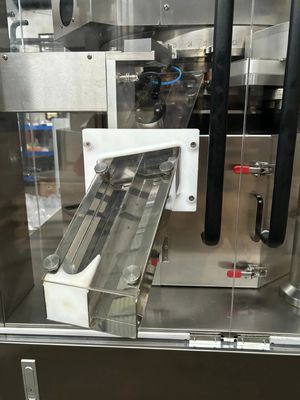

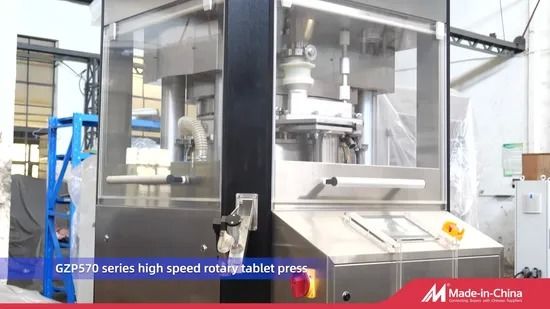

Product Images
Packaging & Shipping
- Wooden packaging meets export standards
- Free packaging service
- Delivery time: 15-45 working days
Punches & Dies
- Custom punches and dies available (round, irregular, concave, bevel edged, etc.)
- TSM-Tooling standard
- Material options: S7/D2, DC53, 6CrW2Si, etc.
Tablet Samples
After Sales Service
- Installation services available with all new machine purchases
- Technical support for installation, debugging, and operation
- Engineer dispatch available for machine setup
- Comprehensive service commitment: quality, service, price, and support
Frequently Asked Questions
Q: Where is your factory? How can I visit your factory?
A: Our factory is located in Shanghai, Chongming District. We welcome visits with prior arrangement.
Q: How can I know your machine is designed for my product?
A: We can test your samples on our machines and provide videos/images. Online demonstrations available via video chat.
Q: How can I trust you for the first time business?
A: We provide business licenses and certificates. Trade Assurance Service available for transaction protection.
Q: How about the after service and guarantee period?
A: 1 year warranty with 24-hour technical support. Experienced team available for international service.
Q: How to contact you?
A: Contact information available on this page via Email, WeChat, WhatsApp, or phone.
Company Profile
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience. Our products are exported to over 70 countries.
As a high-technology enterprise, we handle all processes from casting to metal machining and final assembly. We offer customized solutions based on customer requirements and URS analysis, featuring advanced technology, Omron PLC control, and reliable performance.
